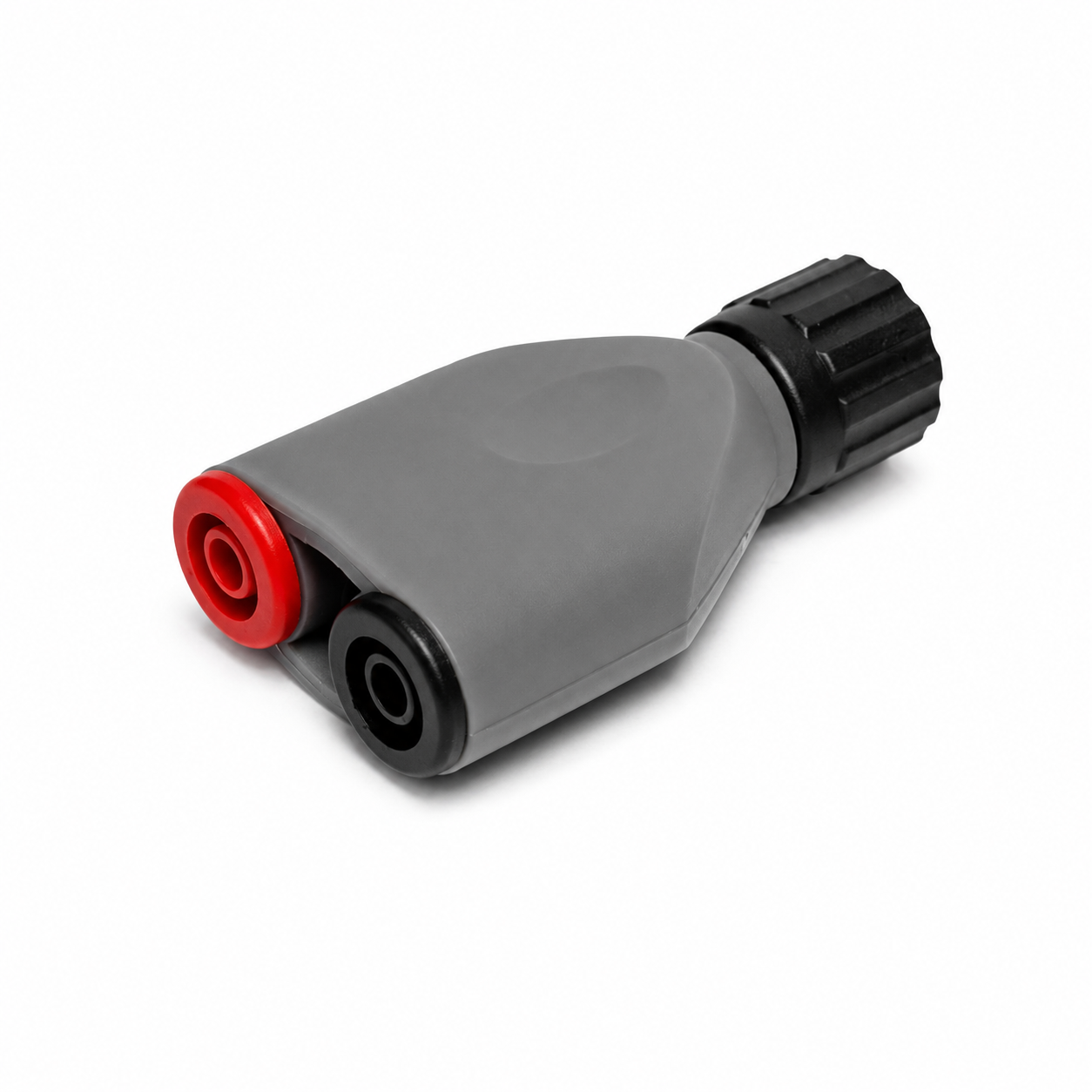

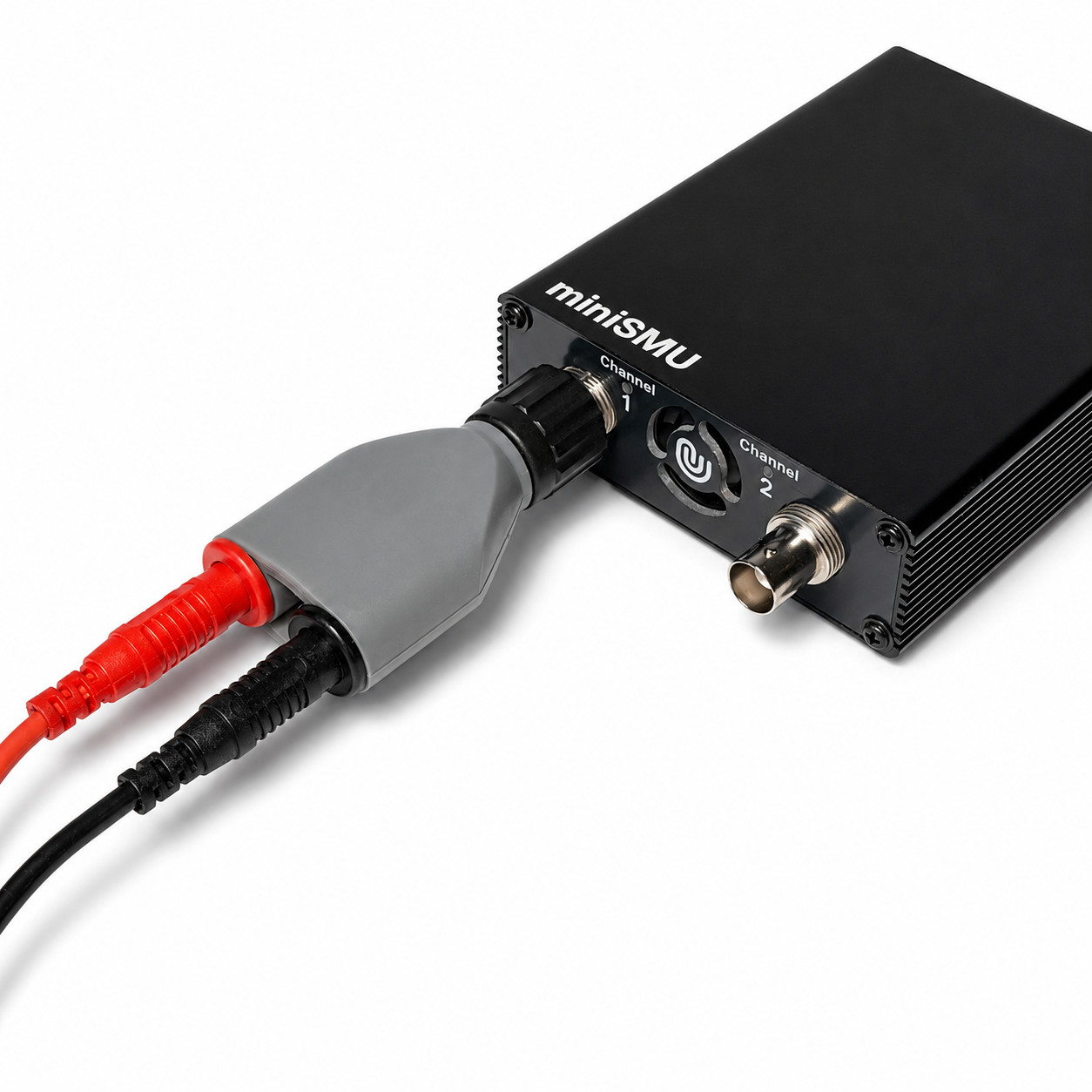

BNC to 4mm banana adaptor for source-measure units. Get red and black banana sockets from your miniSMU or µSMU's BNC output to connect any standard test lead.

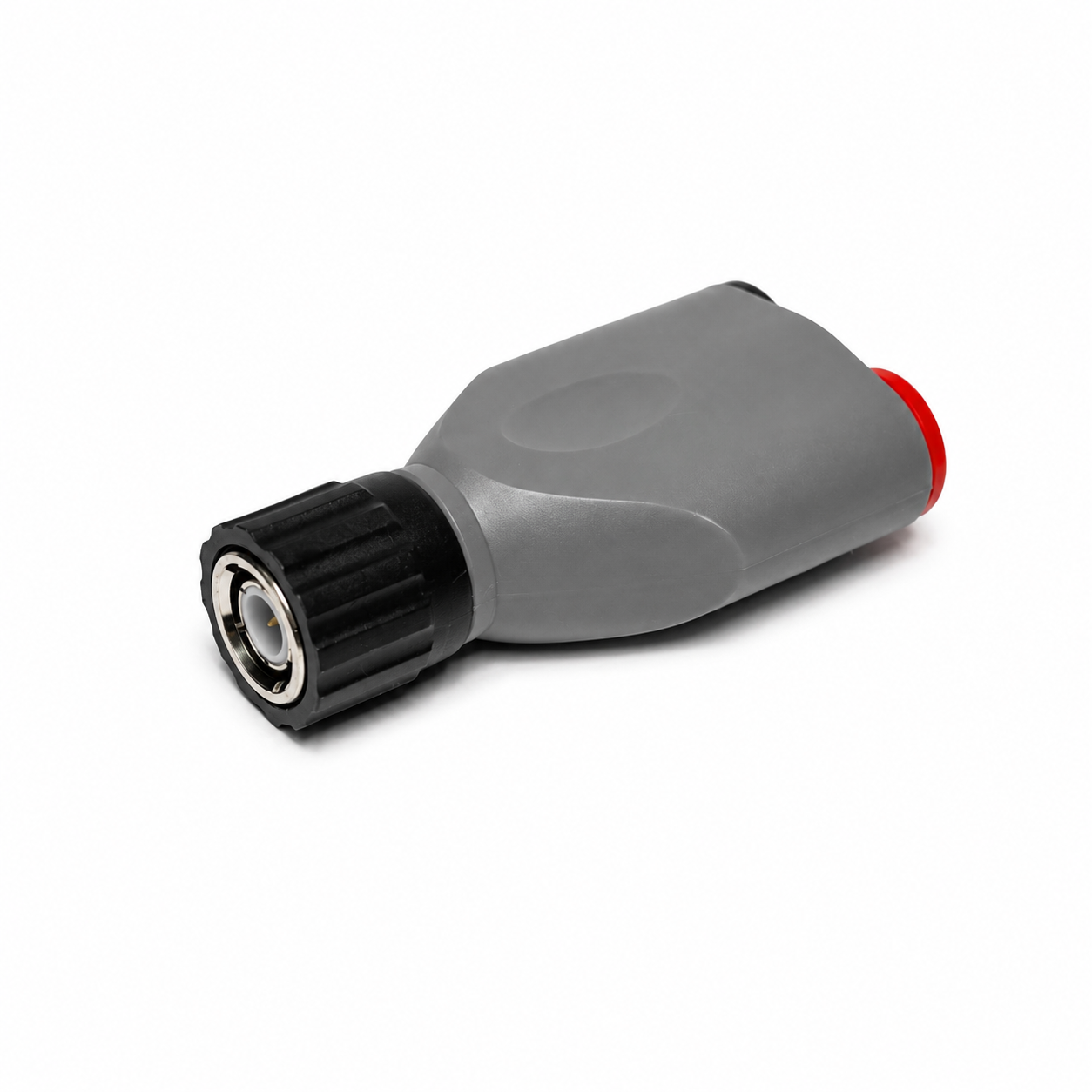

Built for the bench: a BNC bayonet collar gives a secure, repeatable connection, and the moulded body is easy to grip and rotate. Its voltage and current rating is comfortably beyond the miniSMU's ±12 V / ±180 mA full range, so it never limits your measurements.
Compatible with the miniSMU MS01, the µSMU, and any BNC-output instrument.
Specifications
| Input connector | BNC plug (male), bayonet lock |
| Output connectors | 2 x 4mm banana socket (female) |
| Colour coding | Red (centre/HI), black (shield/LO) |
| Accepts | Standard 4mm banana plugs - 19mm spacing |
| Voltage rating | 500 V (CAT1) |
| Current rating | 3 A |
| Contacts | Nickel-plated brass |
| Dimensions | 63x35x18 mm |
